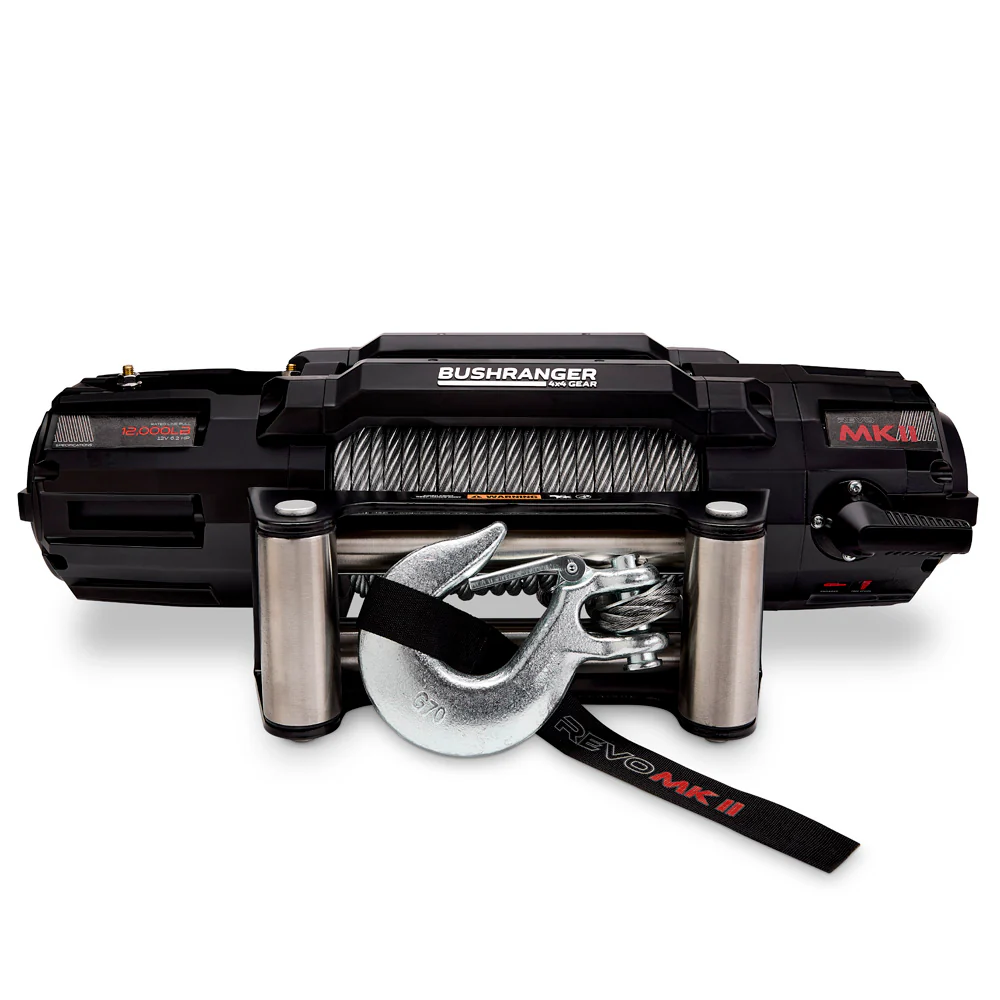

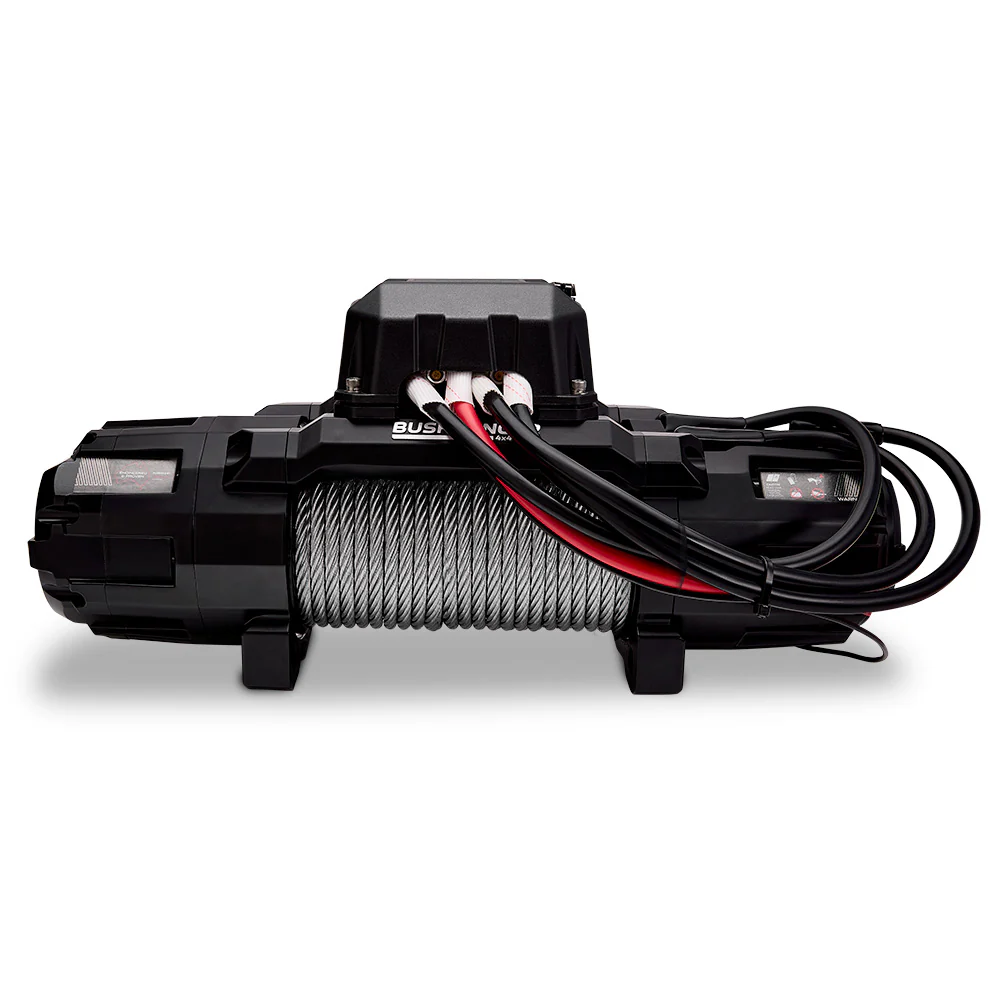

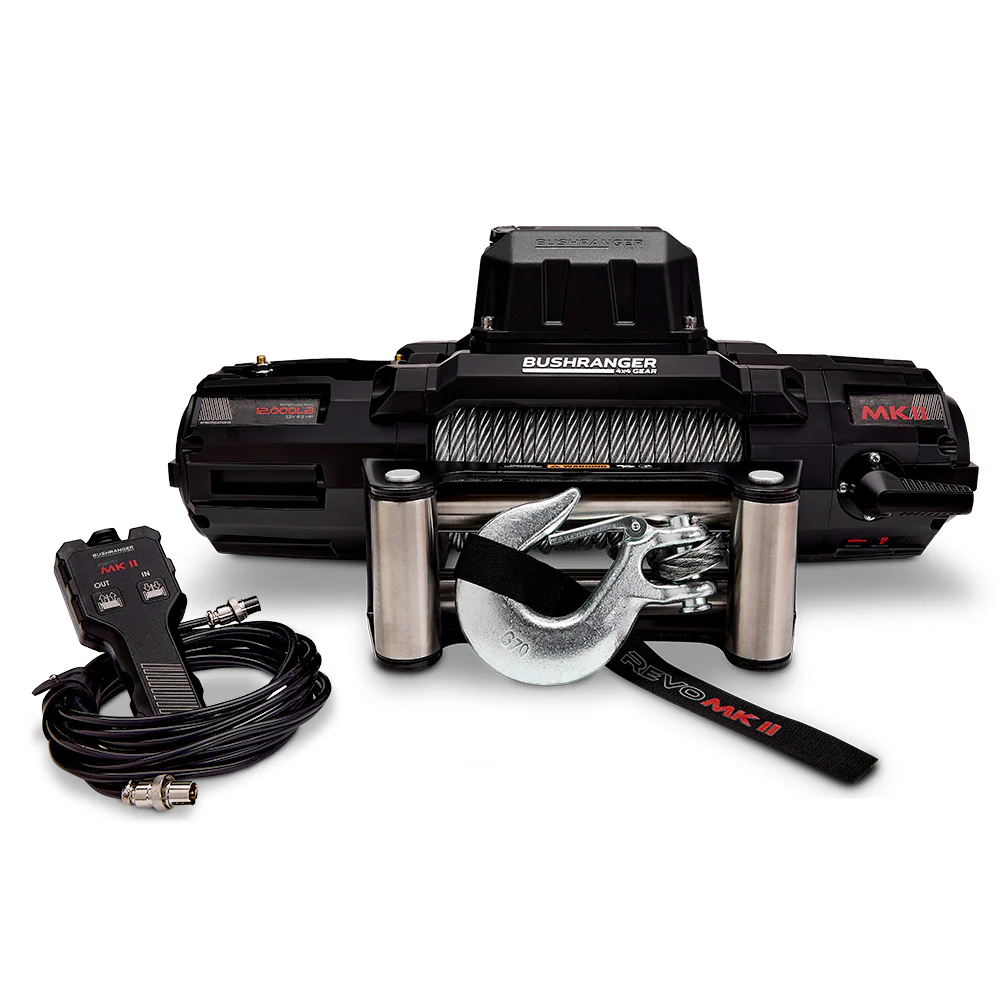

REVO MKII Winch | 12,000lb | WIRE
The Bushranger REVO MKII vehicle recovery winch has been engineered to meet the demands of serious off-road enthusiasts who require dependable performance, even in the most challenging environments. Boasting a wide range of upgrades stemming from years of real-world testing and feedback, the result is an overall lighter weight, easier to fit, safer and more compact winch with increased durability over its predecessor.
ENGINEERED & PROVEN IN AUSTRALIA: The highest quality components and rigorous test methods ensure reliability and longevity even within the harshest environments.

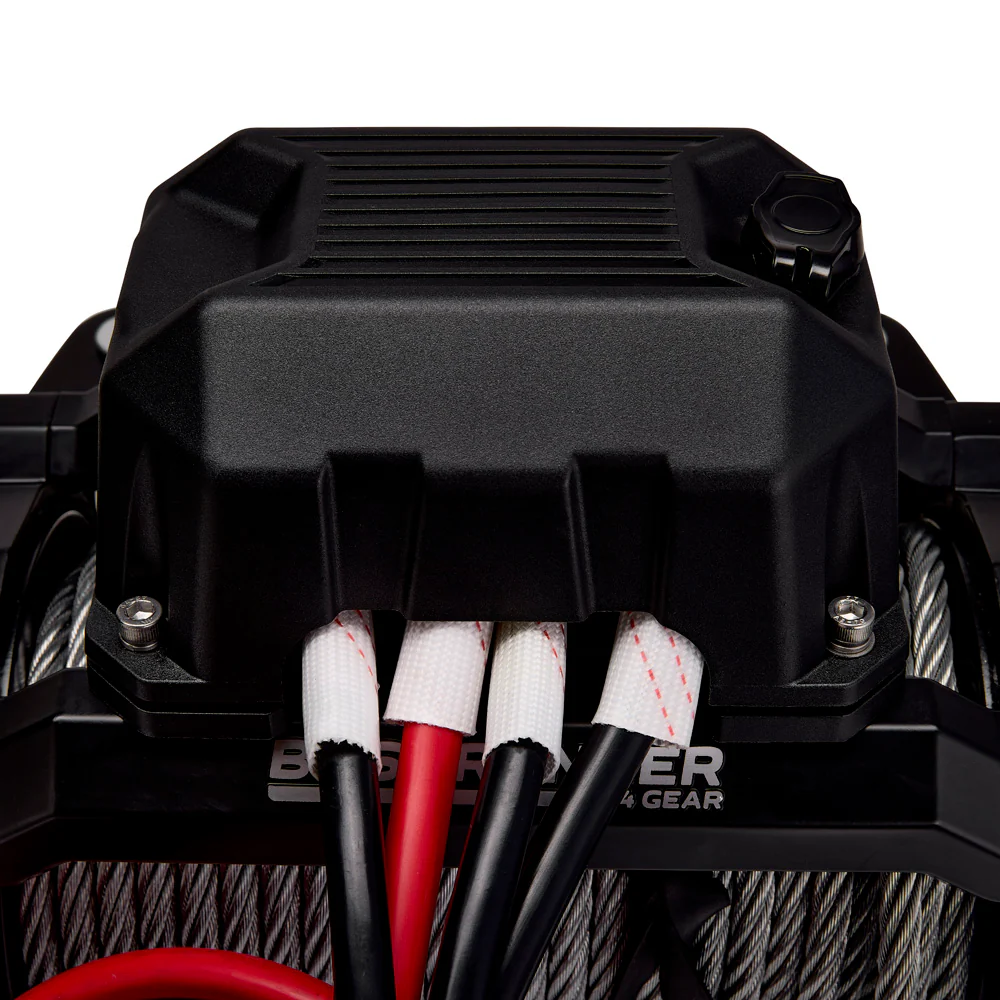

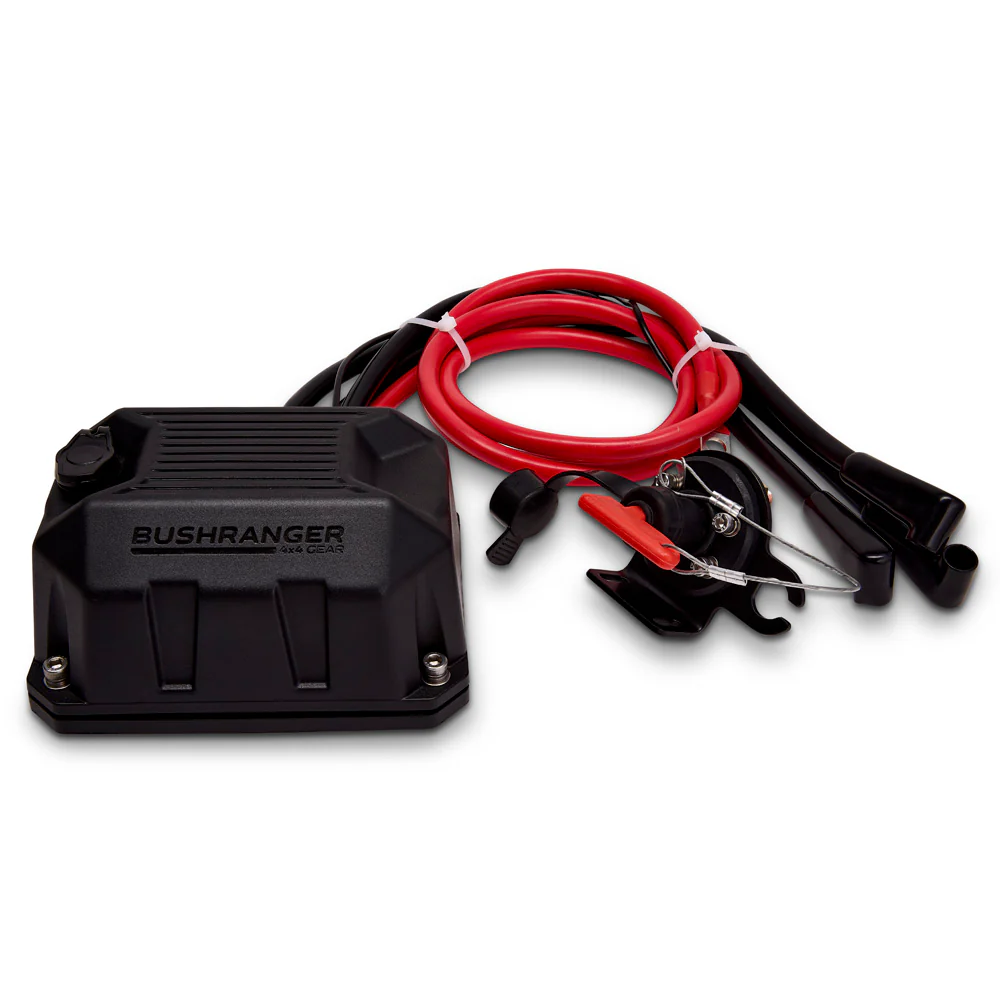

COMPACT MULTI-FIT CONTROL BOX: The compact, lightweight control box provides easier installation in confined areas, reduces interference, and incorporates numerous threaded insert locations for immediate fitting in most bull bars.

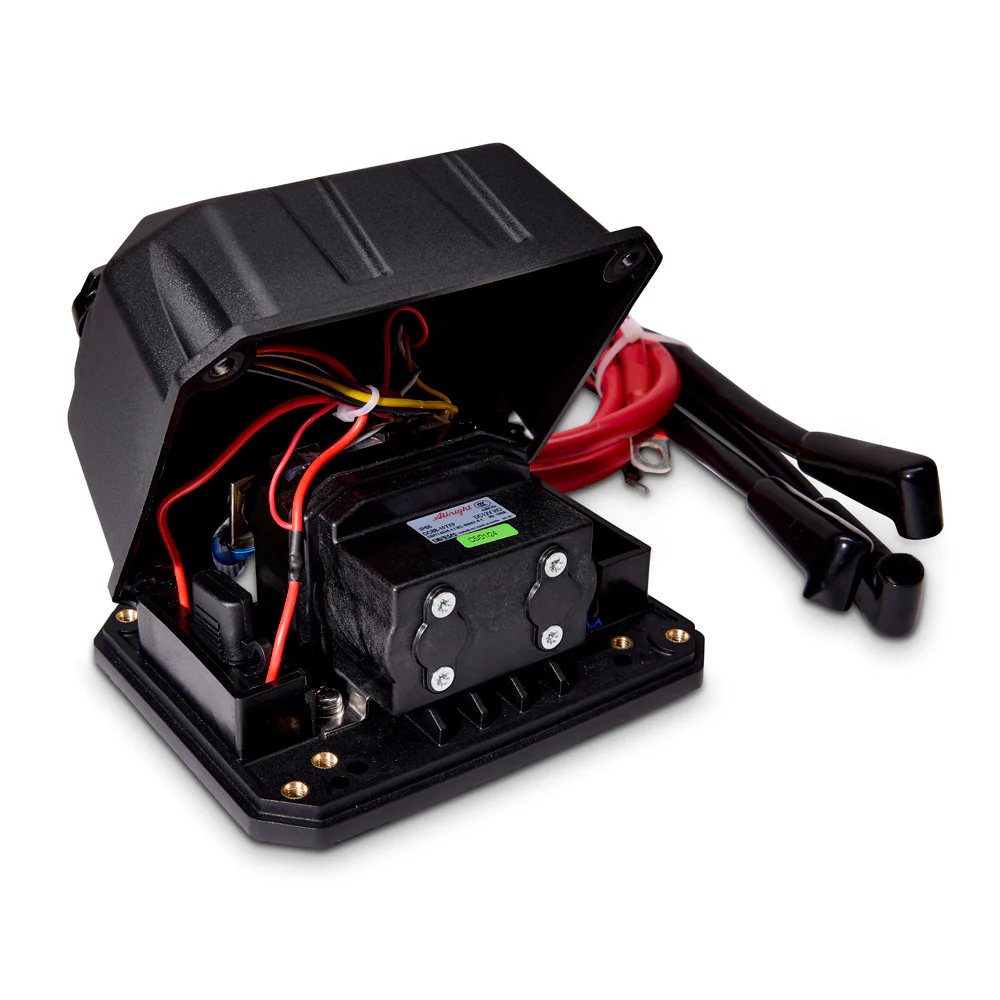

ALBRIGHT CONTACTOR: The Albright DC contactor stands out in the market with its top-of-the-line quality. Sealed with an IP67 rating, it manages the winch motor function with unmatched durability and longevity, ensuring reliable operation time after time.
PREMIUM MOTOR DESIGN: The 12V, 6.2HP series wound motor is constructed using high-grade materials to reduce current draw and increase line speeds, providing a prolonged motor lifespan under full load conditions.
ZERO DRAG BRAKING SYSTEM: The gearbox-mounted brake provides 100% load holding and the capacity for fast-powered unspooling, under no load, without any damage to the winch.
4 STAGE GEARBOX: Features hardened steel gearing for improved load distribution, maximum strength and durability, and is externally adjustable in 16 clocking positions for perfect clutch handle orientation in any vehicle.
ROBUST CONSTRUCTION: Uncompromised strength and rigidity are at the core of the tough aluminium alloy body, finished with a durable satin black powder coat.
EFFORTLESS CLUTCH OPERATION: The astute no-lift clutch handle reduces fitment interference and presents simple operation even within those hard-to-reach locations. Factory positioned for 90% of bull bar fitments.
POWER ISOLATION SWITCH: The highest level of safety comes standard with the inclusion of a 500amp winch isolation switch, providing complete separation of the winch from the vehicle battery when the winch is not in use.

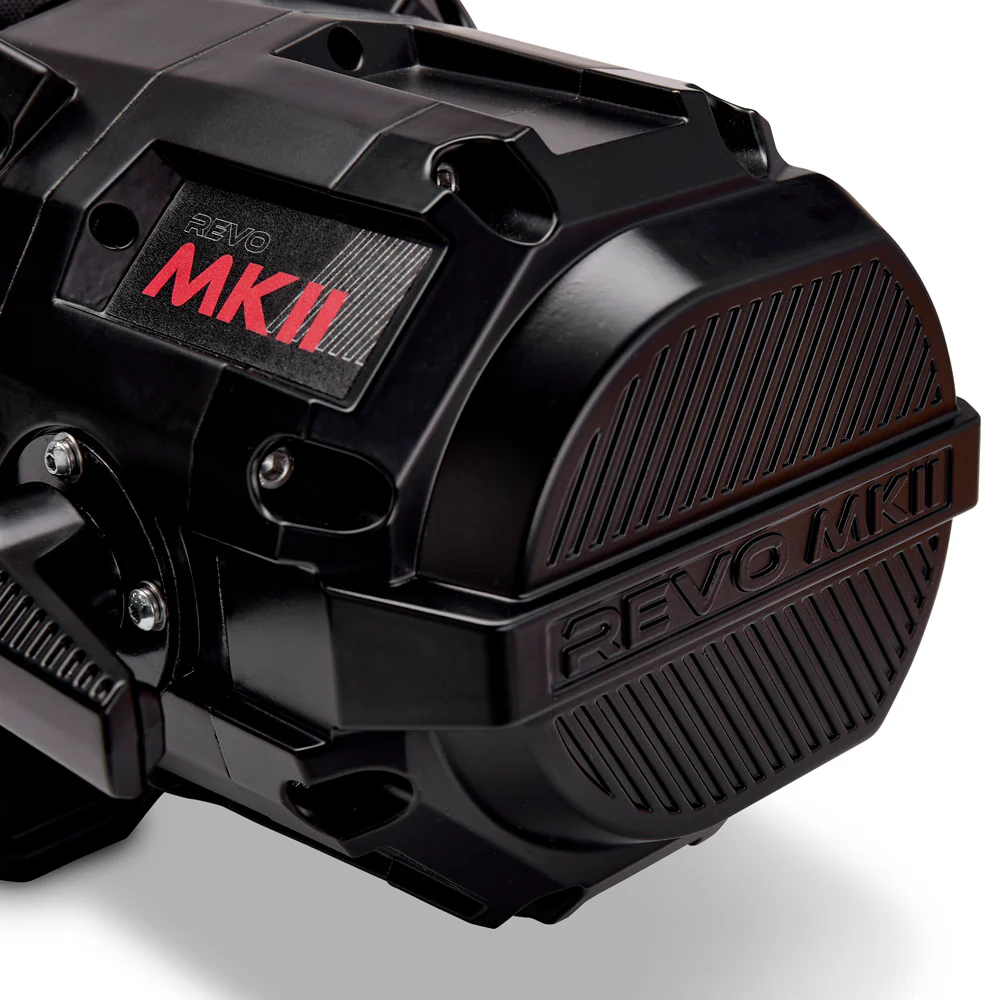

WATER & DUSTPROOF: The completely sealed motor & gearbox is rated to IP68 standard for maximum water, dust and debris protection.

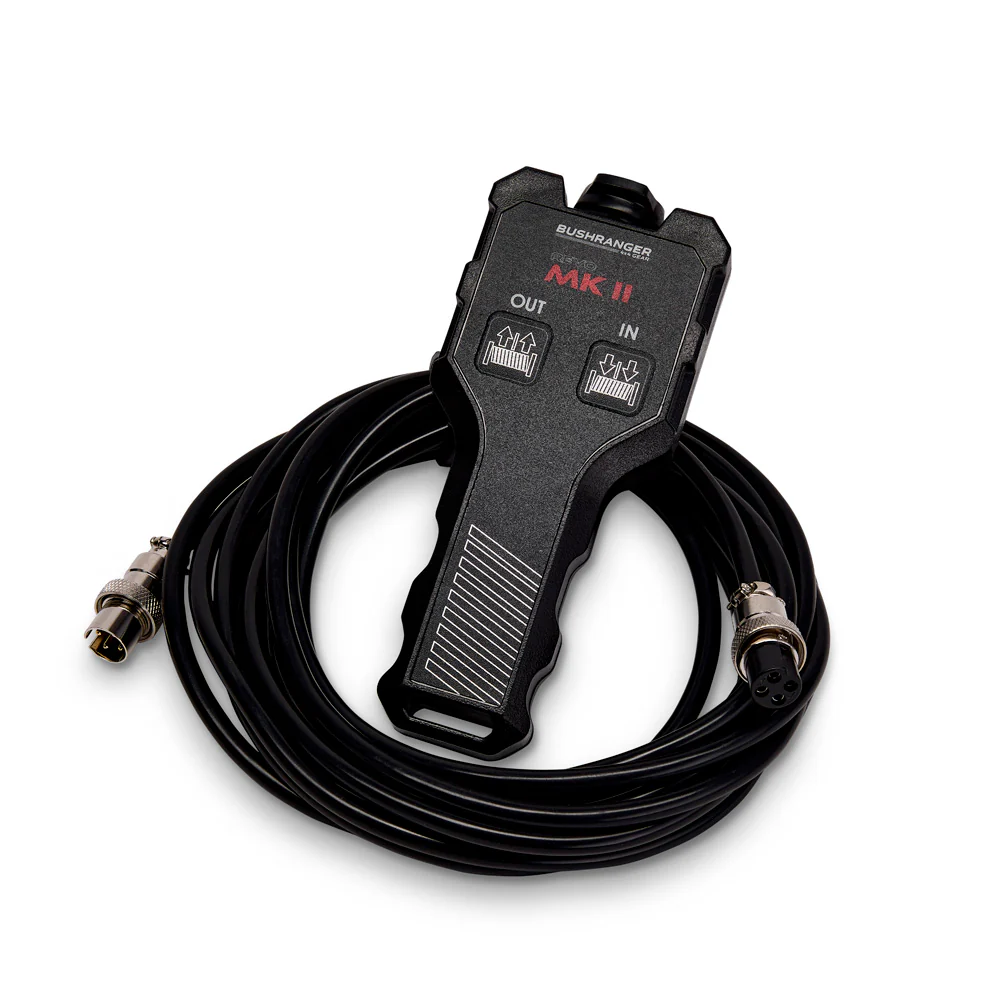

WIRED REMOTE: Compact wired hand controller supplied with a 5m lead, which plugs in via the control box or via a winch plug relocation kit (sold separately).
FITTED WEIGHT: 46.7kg
INCLUDES:
REVO MKII winch, wire rope (25m x 10.5mm) with protective sleeve, prewired control box, wired remote control, forged steel hook with pull tag, aircraft grade aluminium hawse fairlead, main power isolation switch, heavy gauge wiring and hi-tensile mounting hardware.
SPECIFICATION
MODEL: RWM120W
DIMENSIONS: 600mm (L) x 194mm (W) x 185mm (H)
WEIGHT: (FITTED) 46.7kg
RATED LINE PULL: (1st Layer) 12,000lbs (5, 443kg)
MOTOR: 4.6kW (6.2 HP)
REMOTE CONTROL: Wired Hand Control - 5m Lead
ELECTRICAL CONTACTOR: Albright DC88P Contactor
GEARBOX: 171:1 2 Stage Planetary & 2 Stage Spur gear
BRAKE: Gearbox mounted 100% load holding proportional friction brake
CLUTCH: Rotating Ring Gear | 90° Turn handle (no lift)
ROPE: 10.5mm diameter x 25m Wire Rope
FAIRLEAD: Stainless Steel 304 Roller Fairlead
FINISH: Electrophorus Pretreated Black Satin Powder Coated Finish
WATERPROOF RATINGS: IP68 Winch Motor and Gearbox
WARRANTY: Limited Lifetime Warranty (7 Year Warranty on Electrical Components)
CERTIFICATIONS: CE
