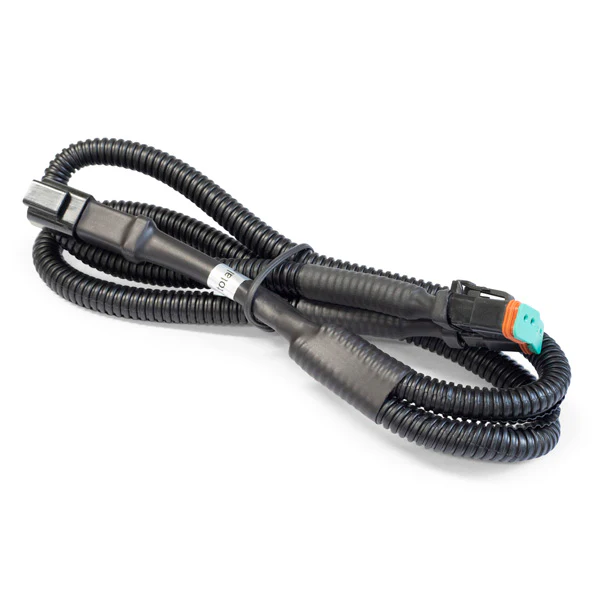

Night Hawk Deutsch plug Wiring Splitter - NHW300DT

The Deutsch splitters provide the option of powering two lights from a single Deutsch plug output, allowing for up to four suitably rated lights to be run from a single wiring loom when two splitters are used. Use the High Beam Adaptor Splitter to trigger two separate wiring looms from the one high beam adaptor, allowing for separately switched groups of lights to be fitted on the front of the vehicle using one high beam pickup point.

SPECIFICATION

Splits one 13A rated DT06-2S plug from the 300W wiring loom into two DT06-2S outputs

Maximum combined current draw capacity of the two outputs is 13A

650mm in length (input plug to output plugs). Max extension between output plugs is 900mm

Commonly used for connecting the following light configurations onto a single 300W loom:

• One pair of 7” driving lights + one light bar up to 20.5” (1 splitter required)
• One pair of 7” driving lights + two light bars up to 20.5” (2 splitters required)
• Work light setups with 3 or 4 light bars up to 20.5” (2 splitters required)
